电厂燃料分析员-国际化培训资源包 Power Plant Fuel...

李巧云Li Qiaoyun、麻克栋Ma Kedong、黄修行Huang Xiuxing、韦文业Wei Wenye、李冰红Li Binghong、杨眉Yang Mei、温先露Wen Xianlou、张贵琼Zhang Guiqiong、刘德庆Liu Deqing、陈琼Chen Qiong

目录

  • 火电厂简介 Introduction to Thermal Power Plants
    • ● 火电厂工艺流程 Process flow of thermal power plants
    • ● 电厂煤化验员岗位职责 Job responsibilities of coal laboratory personnel in power plants
    • ● 测试巩固 Test consolidation
  • 模块一 煤样的认知与采制  Module 1 Cognition and Sampling of Coal Samples
    • ● 项目一 煤的认知 Project 1 Cognition of coal
      • ● 任务1 煤的形成 Task 1 Formation of coal
      • ● 任务2 煤的分类 Task 2 Classification of coal
    • ● 项目二 煤样的采制 Project 21 Collect and process of coal sample
      • ● 任务1  煤样的采集 Task 1 Collection of coal samples
      • ● 任务2 煤样的制备 Task 2 Preparation of coal samples
    • ● 测试巩固 Test consolidation
  • 模块二 煤样的组成分析 Module 2  Composition analysis of coal samples
    • ● 煤的元素分析、工业分析 Element analysis and industrial analysis of coal
    • ● 项目三  煤样的工业分析 Project 3  Industrial analysis of coal samples
      • ● 任务1 全水测定 Task 1 Total water measurement
      • ● 任务2 内水测定 Task 2 Water measurement inside
      • ● 任务3 灰分测定 Task 3 Ash content determination
      • ● 任务4 挥发分测定 Task 4 Determination of volatile matter
      • ● 任务5 固定碳 Task 5 Fixed Carbon
    • ● 项目四 煤样的元素分析 Project 4  Elemental analysis of coal samples
      • ● 任务1 含硫量测定 Task 1 Determination of sulfur content
    • ● 测试巩固 Test consolidation
  • 模块三 煤样的发热量测定 Module 3 Determination of calorific value of coal samples
    • ● 项目五 煤样的发热量测定 Project 5  Determination of calorific value of coal samples
      • ● 任务1 发热量测定  Task 1 Calorific value measurement
      • ● 任务2 热容仪的标定 Task 2 Calibration of the heat capacity meter
    • ● 技能拓展:油样发热量测定  Skill Development: Oil Sample Calorific Value Measurement
    • ● 测试巩固 Test consolidation
  • 模块四 煤样的物理特性分析 Module 4 Analysis of Physical Characteristics of Coal Samples
    • ● 项目六 煤样的灰融性测定 Project 6  Determination of ash fusibility of coal samples
      • ● 任务1 灰熔性测定  Task 1 Determination of ash fusibility
    • ● 项目七 煤样的细度测定 Project 7  Determination of fineness of coal samples
      • ● 任务1 细度测定 Task 1 Fineness measurement
    • ● 测试巩固 Test consolidation
  • 知识拓展 Knowledge expansion
    • ● 煤质分析全流程与报告表达 The whole process and report expression of coal quality analysis
    • ● 煤质化验员技能鉴定题库Question Bank for Coal Quality Analysts' Skill Appraisal
    • ● 煤质化验员技能竞赛题库Question Bank for Coal Quality Analysts' Skill Competition

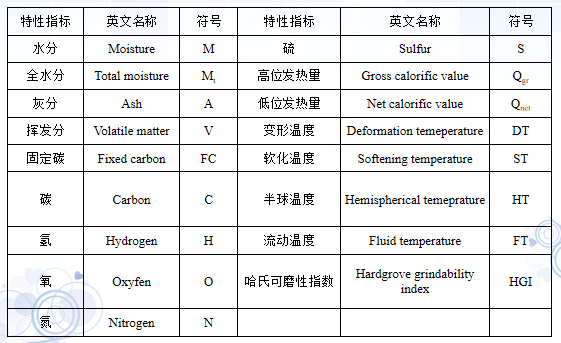

煤的元素分析、工业分析 Element analysis and industrial analysis of coal

1.收到基表达式为Received base expression as

工业分析Industrial analysisMt+Aar+Var+FCar=100

元素分析elemental analysisMt+Aar+Car+Har+Oar+Nar+Sc,ar=100



2.空气干燥基表达式为The expression for air drying basis is

工业分析Industrial analysisMad+Aad+Vad+FCad=100

元素分析elemental analysisMad+Aad+Cad+Had+Oad+Nad+Sc,ad=100



3.干燥基表达式为The expression for dry basis is

  工业分析Industrial analysisAd+Vd+FCd=100

  元素分析elemental analysisAd+Cd+Hd+Od+Nd+Sc,d=100



4. 干燥无灰基表达式为The expression for dry ashless basis is

工业分析Industrial analysisVdaf+FCdaf=100

元素分析elemental analysisCdaf+Hdaf+Odaf+Ndaf+Sc,daf=100
