分数维数-Fractal Dimension



Definition of dimension

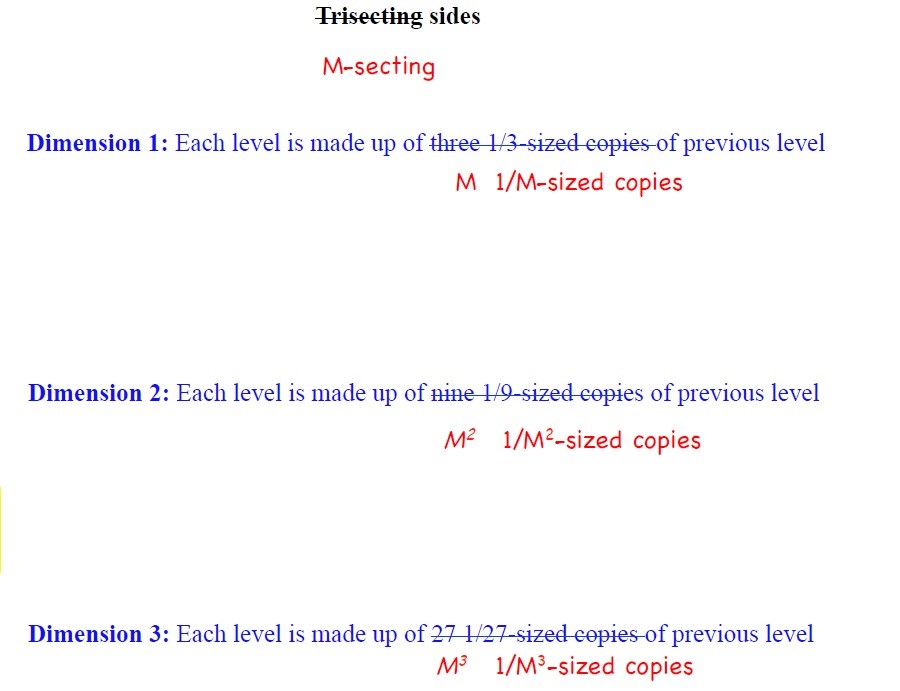

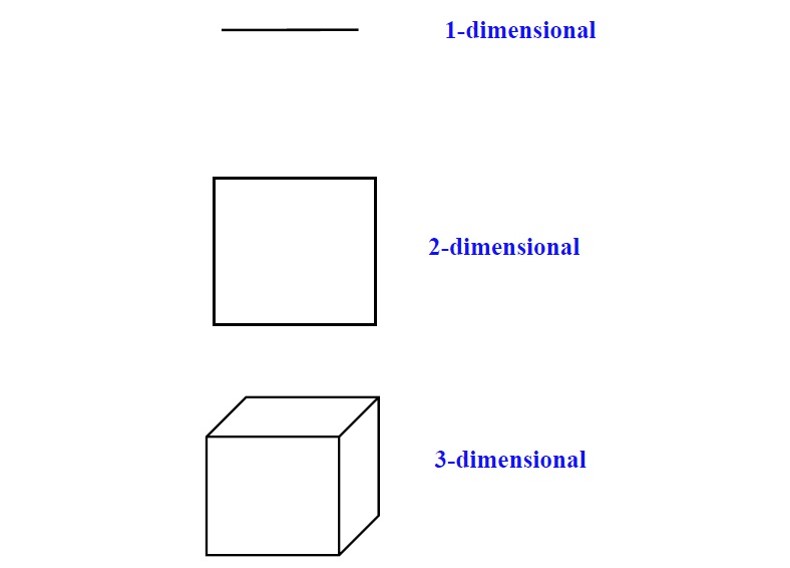

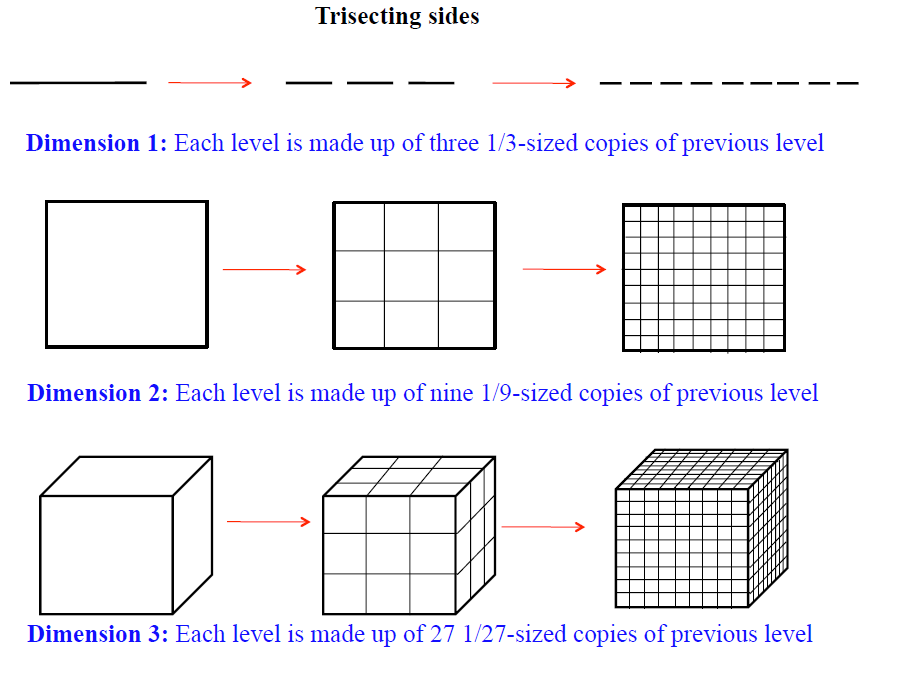

● Create a geometric structure from a given D-dimensional object (e.g., line, square, cube, etc)          by repeatedly dividing the length of its sides by a number M.

● Then each level is made up of MD copies of the previous level.

● Call the number of copies N

● Then N = MD.

● We have:

                                log N = D log M                                D = log N / log M
